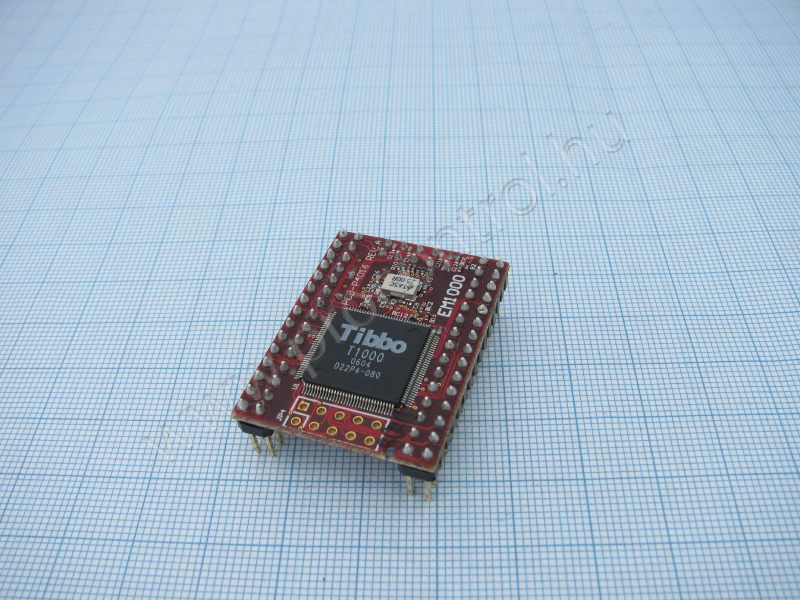

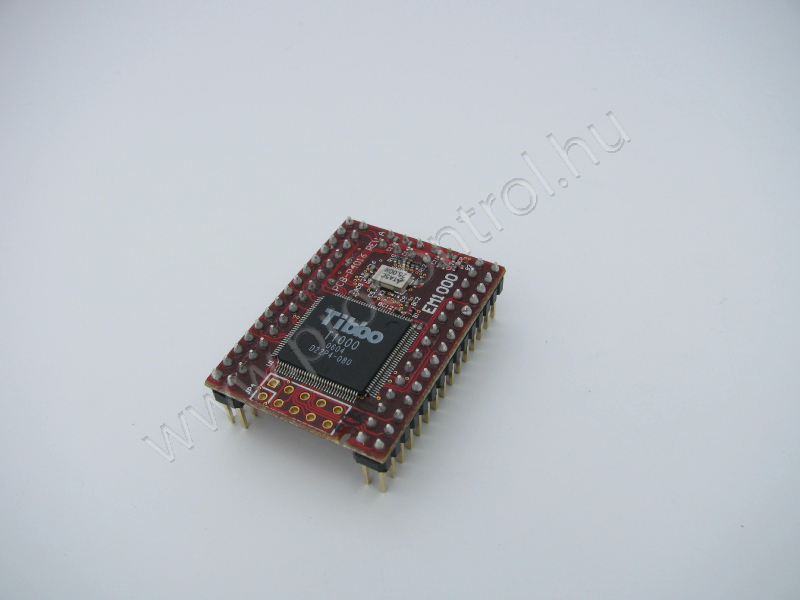

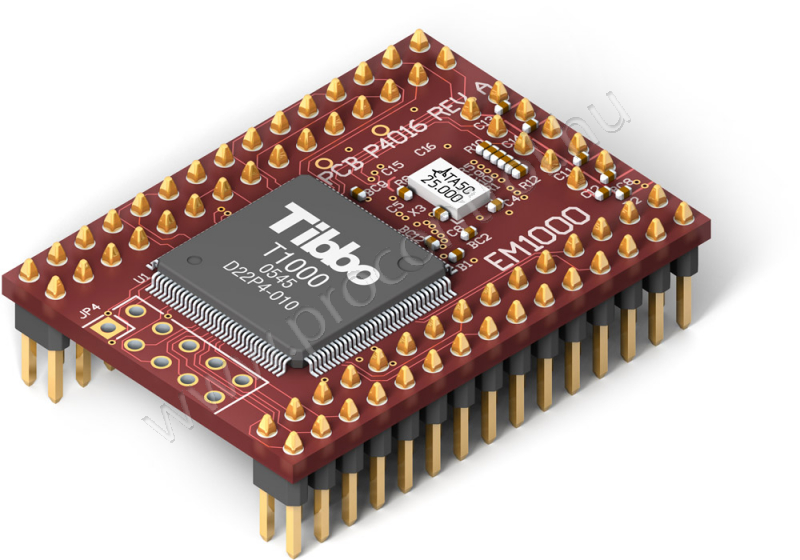

TIBBO EM1000-512K-S-01 512KB programmable Ethernet module
Brief description
The EM1000 is a third-generation Tibbo Ethernet module built exclusively for use with TAIKO -- Tibbo's rapid programming solution that includes Tibbo BASIC language, Tibbo IDE software, and TiOS operating system.
The hardware of the EM1000 offers all necessary components to build a full-featured data collection/ control/ automation system equipped with serial ports, card reader inputs, digital I/O, keypad, LCD, buzzer, and real-time clock.
Properties
-
Compact: 38.4x28.4x5.5mm.
-
88MHz purpose-built CPU.
-
One 100BaseT Ethernet port.
-
x4 high-speed TTL serial ports:
-
o Baudrates up to 1.8Mbps;
-
o Full- and half-duplex comms;
-
o Support for Wiegand, clock/data i/f;
-
o Optional automatic flow control.
-
512/1024K onboard flash disk.
-
Real-time clock with backup power.
-
SPI port for connecting WA1000 Wi-Fi module.
-
x49 general-purpose I/O lines, x40 of them combined into five 8-bit ports
-
x4 status LED control lines.
-
Variable-frequency buzzer control pin.
-
Low-power (230mA@3.3V).
-
Internal firmware is upgradeable through the serial port or network.
-
EM1000-SK Starter Kit available.
Technical attributes:
|
Ethernet Interface
|
10/100BaseT
|
|
Ethernet Magnetics
|
-
|
|
Ethernet connector (RJ45)
|
-
|
|
Serial Connection Features
|
TTL; full-duplex (RS232/RS422), half-duplex (RS485) ; RX, TX, RTS, CTS, DTR, DSR; Baud: 150-921600bps;
|
|
Number of additional universal I/O Lines
|
49
|
|
Routing buffer size (bytes)
|
Tibbo BASIC software
|
|
Average Power Consumption
|
230mA, 3,3V DC
|
|
Device temperature during operation
|
25 °C
|
|
Dimensions (mm)
|
38,4 mm x 28,4 mm x 5,5 mm
|
|
Serial Port
|
4 x UART, Wiegand, clock/data
|
|
Number of I/O lines
|
49
|
|
Max. load current for each I/O line
|
10 mA
|
|
Flash memory
|
512 KB
|
|
EEPROM memory
|
2040 B
|
|
Supported network protocols
|
UDP, TCP, ICMP (ping), and HTTP (Others -> Tibbo BASIC)
|
|
Number of simultaneous UDP or TCP (HTTP) connections
|
16
|
|
Nominal power supply voltage
|
3,3 V
|
|
Max. operating current
|
230 mA
|
|
Max operating relative humidity
|
90 %
|
|
Serial-over-IP
|
+
|
|
Programmable
|
+
|
|
Power supply range
|
-
|
|
Operating temperature
|
-20°C - 70°C
|
|
Additional peripherals
|
RTC, flash disk, SPI port, buzzer control
|
Mentés
Types
Típus jelek:
"EMJ": beépített RJ45 csatlakozóval
"512": 512Kbyte flash

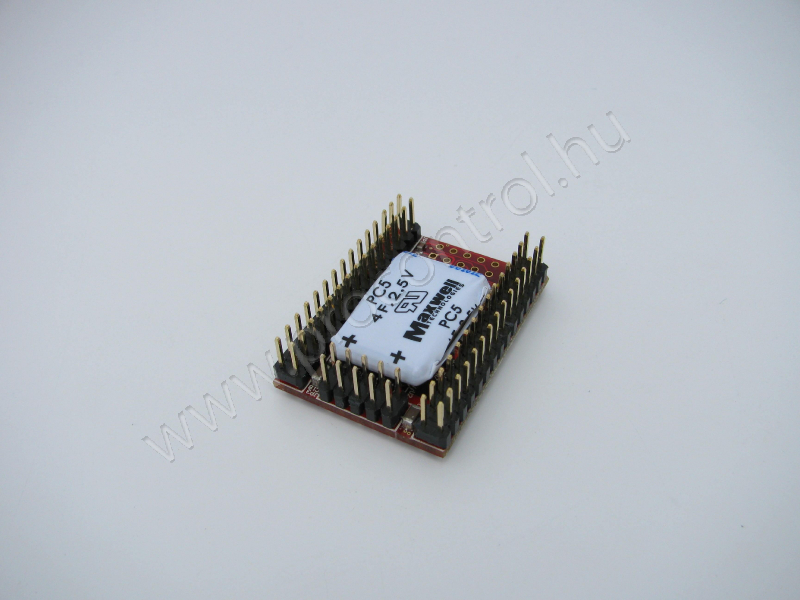

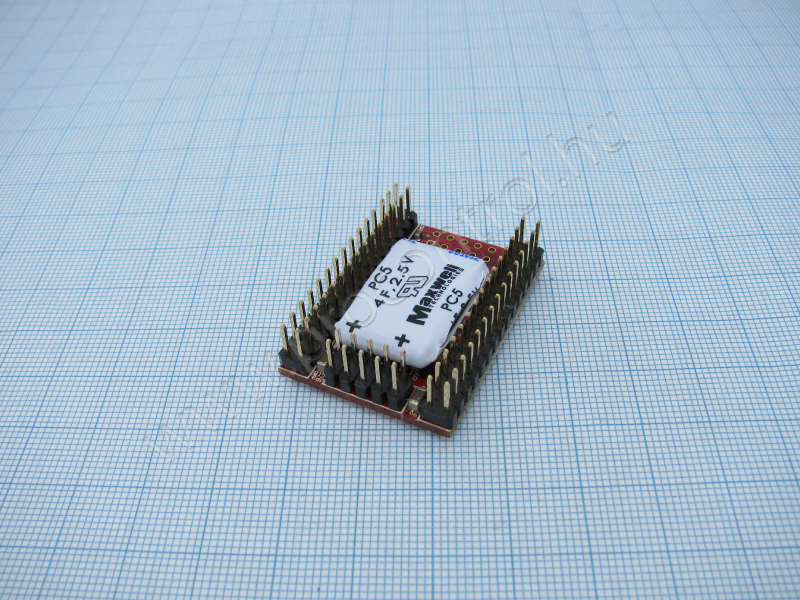

"256B" vagy "512B"- nem csupán flash memóriát, de backup capacitort is tartalmaz az órához
"-Z": ZigBee interfész
|
| Product Code: |
305213 |
| Manufacturer: |
Tibbo
|
Net price: 28 600 Ft
|
| Gross price (27% VAT): 36 322 Ft
|
| Special net price: 22 880 Ft
|
| Request an Offer
|
|
Pieces/Packages:
|
1 pcs
|
|
Minimum order quantity:
|
1 pcs
|
|
